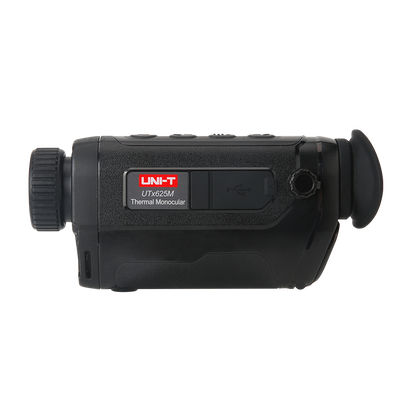

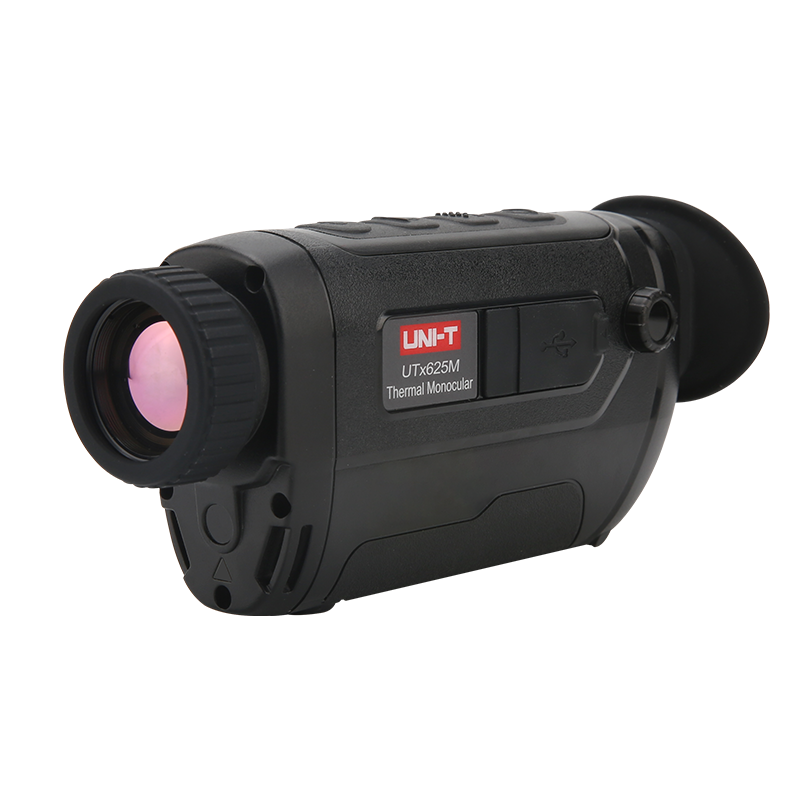

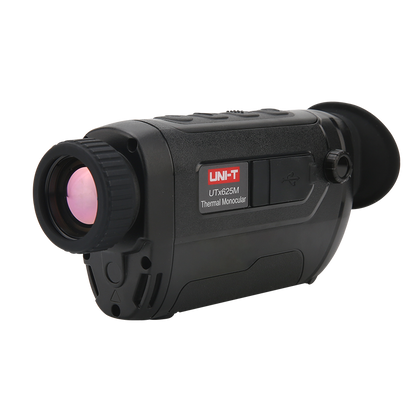

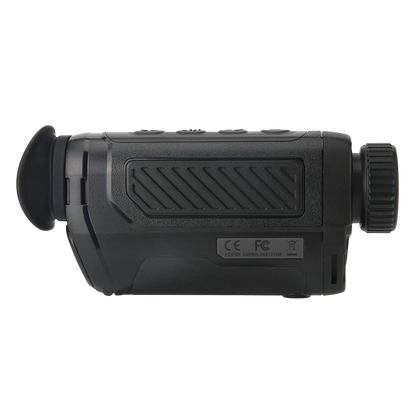

UTx625M Hi-Res Long-Distance Thermal Monocular
UTx625M Hi-Res Long-Distance Thermal Monocular
Couldn't load pickup availability
Share
Overview
UNI-T UTx625M
Advanced Thermal Imaging for Long-Range Surveillance
The UNI-T UTx625M is a high-performance thermal monocular designed for professionals requiring precision and reliability for long-range surveillance. With stadiametric ranging, superior resolution, and exceptional thermal sensitivity, it’s ideal for wildlife observation, search and rescue, and security operations.
The UNI-T UTx625M’s 25mm lens and 640×512 resolution provide unparalleled image clarity, making it easier to detect and identify heat sources at extended distances. This higher resolution allows for detailed thermal images, improving situational awareness and enabling users to distinguish finer details in the field.
With stadiametric ranging, the UNI-T UTx625M offers a practical method for estimating distances to objects of known size. While not as precise as laser range finding, stadiametric ranging is lightweight, efficient, and reliable for dynamic environments. Combining its superior resolution with exceptional thermal sensitivity of ≤25mK, the UNI-T UTx625M is a trusted companion for professionals in challenging environments.
Key Features
-
IR Resolution: 640×512 pixels for superior thermal imagery
-
Lens Focal Length: 25mm for long-range detection
-
Thermal Sensitivity: ≤25mK for enhanced detection accuracy
-
Field of View (FOV): 17.4° × 14° for focused scanning
-
Range Finding: Stadiametric
-
Battery Life: 6+ hours of continuous use
-
Durability: IP67 waterproof and drop-resistant up to 2 meters
-
Additional Features: Hot Trace, Wi-Fi Live Streaming
Frequently Asked Questions
What is the detection range of the UTx625M?
Detection range depends on the target size and thermal contrast. The UTx625M's specifications list the maximum detection range for a standard 1.7m × 0.5m target. Actual usable range for identification is typically 30-50% of the maximum detection distance.
Is the UTx625M waterproof?
The UTx625M carries an IP rating for dust and water resistance. Check the specifications tab for the exact IP rating. The device is designed for outdoor use in varying weather conditions.
What's included with the UTx625M?
The UTx625M ships with the monocular, carrying case, USB charging cable, lens cloth, and user manual. Check the specifications tab for the complete package contents.
Specifications
| IR Resolution | 640×512 |
| NETD | ≤ 25mK |
| Field of View | 17.4° × 14° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 50 Hz |
| Focus | Manual Focus |
| Detection Range | 1318m |
| Digital Zoom | 2x, 4x, 8x / 1.0 - 8x continuous |
| Image Modes | Thermal |
| Image Format | PNG |
| Video Recording | Yes |
| Video Format | MP4 |
| WiFi | Yes |
| Mobile App | Thermal Xplorer (Android & iOS) |
| Interface | USB-Type-C |
| Data Storage | Built-in 16GB |
| Display Type | OLED |
| Display Size | 0.39in |
| Display Resolution | 1024×768 |
| Languages | English, French, German, Spanish, Italian, Russian |
| Battery | 3200 mAh detachable Li-ion battery (UT-M20) |
| Battery Life | ≥ 3.5h (with Wi-Fi off) |
| Weight | 357 g |
| Dimensions | 160 × 71.5 × 38.5 mm |
| IP Rating | IP67 |
| Drop Rating | 2m |
